8t Bulk Material 3m³ Clamshell Mechanical Grab Bucket
Product Feature
The Two Rope Mechanical Clamshell grabs for two line operated cranes (One Holding Rope and One closing Rope). The grabs are specially designed for charging and discharging sand, gravel and other bulk materials. The grabs can be executed with open or closed shells depending on the job and the type of material to be handled. The grabs are manufactured of high wear resistant steels. All bearings are heavy duty and sealed for high performance.
Product Features
Optional the Grabs shells can be executed with Kick plates to reduce capacity. This will give you an advantage when bulk materials with various densities are (dis)charged. This can be calculated to the biggest capacities possible in combination with the lifting capacity of your crane.
Technical specification
| Capacity | 3 m³ |
| Density | 0.8t/m³ |
| Dead Weight | 2600kg |
| Total lifting capacity | 8t |
| Diameter of closing rope | 24mm |
| Diameter of pulley | 520mm |
| Falls | 3 |
Our Company
With years of experience, the OUCO Marine Group has its own designing team and manufacturing
factory, excellent European management who has 47 years of experience on offshore business, which
also provides after sales services overseas.
Our production line covers marine and offshore knuckle boom crane, telescopic crane, stiff boom crane,
non-standard steel structure, more environmental-friendly operations and also truck crane with the range
from 15t to 150t.Port industry which includes cranes, hoppers and grabs.
OUCO Machinery can build any type of handling equipment, according to our own design, but also according to provided designs.
We build products according to any certification requested by the client and are able to build them for working in, and under extreme heavy circumstances for working tempertures of - 40C accordingly.
Product Tags:
|
|

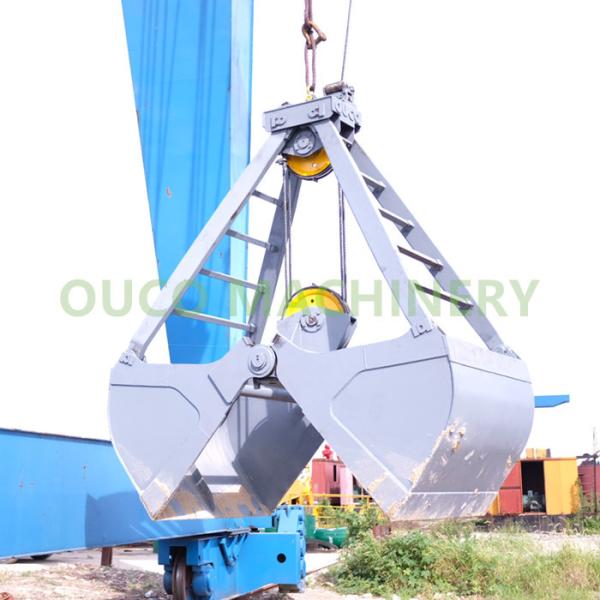

8t Bulk Material 3m³ Clamshell Mechanical Grab Bucket Images
|
